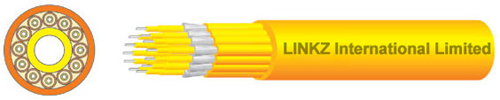

Breakout Fiber Cable
Description

Product Standard Certification:
- UL/cUL listed OFNR/FT4

Reference Standard:
- Bellcore GR-409-CORE, TIA/EIA-568-B.3


Application
- Enables individual routing or fanning
- Available with singlemode and multimode 50/125, 62.5/125 ¦Ìm fibers
- Available up to 12 fibers (including heavy duty construction)
- Quick termination to connectors
- Numbered subunits for easy handling
- Horizontal Cabling
- UL and cUL listed; OFNR/FT4 for riser intra-building backbone cabling
Cable Construction
Part No. Fiber
Count		 Outer
Diameter
(mm)		 Weight
(kg/km)		 Min. Tensile
Load (N)
Short Term		 Min. Tensile
Load (N)
Long Term		 Max. Tensile
Load (N)
Short Term		 Max. Tensile
Load (N)
Long Term
803004 4 6.8 32 68 102 1000 400
803006 6 8.2 45 82 123 1200 450
803008 8 8.8 75 88 132 1700 500
803012 12 11.0 100 110 165 1700 500


Optical Performance
    Singlemode Multimode 50/125 ¦Ôm Multimode 62.5/125 ¦Ôm
wavelength (nm) 1310 / 1550 850 / 1300 850 / 1300
Max. Attenuation (dB/km) 1.0 / 1.0 3.5 / 1.5 3.5 / 1.5
Min. Bandwidth (MHz/km) - 500 / 500 200 / 500
* Please click on the part numbers for downloading cable specifications.
Both Chinese and English versions are available.
